How to Choose the Right Scale for an Architectural Model
The right scale is determined by what the model needs to communicate, how much detail it must show, and how large the finished model can practically be.
A larger scale allows more detail. A smaller scale shows more context. The goal is not to choose the most impressive scale, but the one that makes the right information clear.

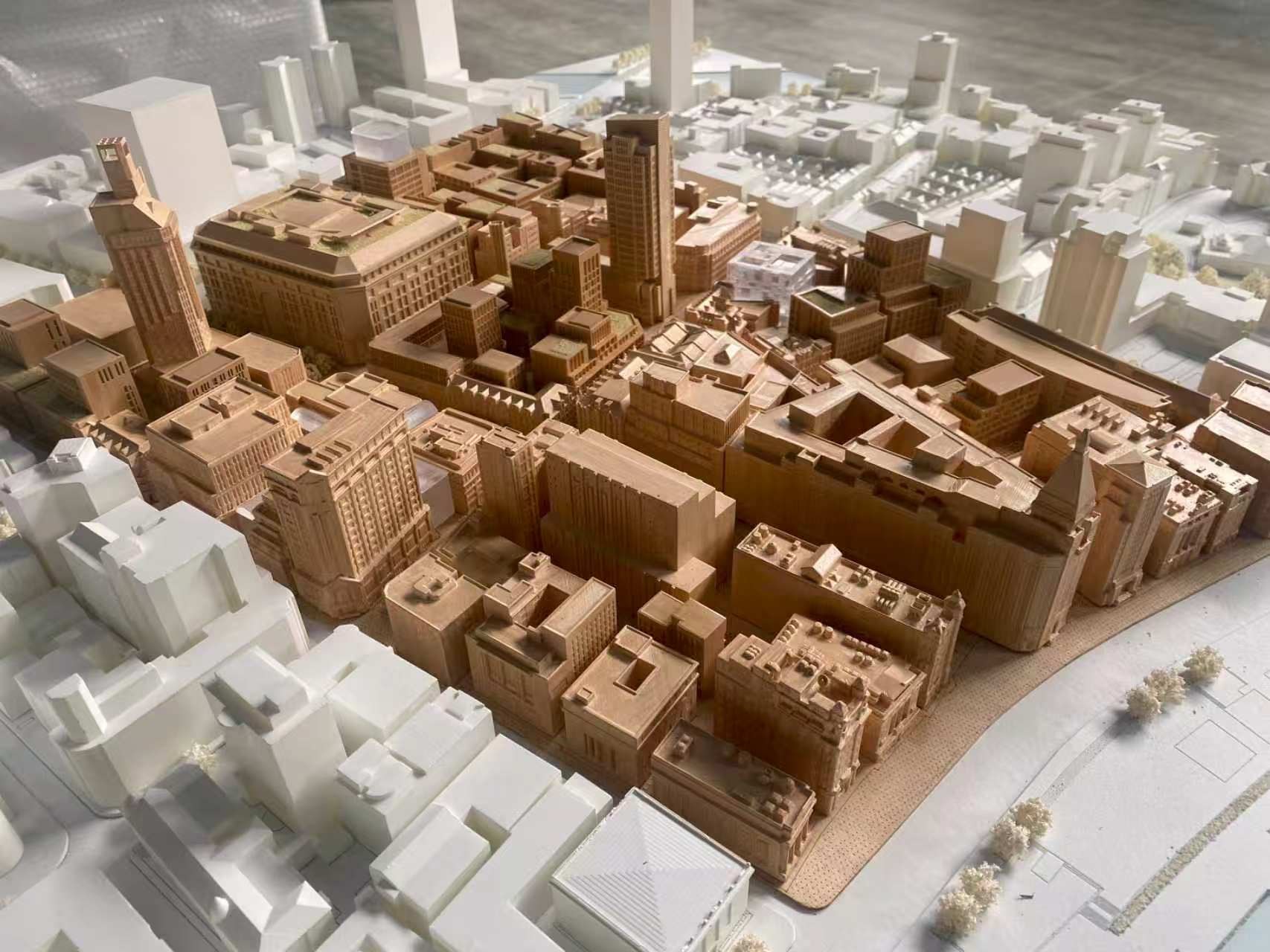

Old Town Masterplan · 1:750 · ABSStart with the dimensions you know
You do not need complete drawings to estimate an appropriate scale. An approximate building height, footprint, site boundary, or desired model size is enough for an initial calculation.
If you know the actual dimensions, calculate the model size using:
For example, a 30-meter building represented at 1:100 will be approximately 300 millimeters tall.
If you know the desired model size
You can also work backward from the space available:
Make sure both measurements use the same unit.
For example, a building approximately 200 feet tall is 2,400 inches tall. If the model should be about 20 inches tall:
This suggests a scale near 1:120. A standard scale such as 1:144 could then be considered, producing a building approximately 16.7 inches tall before adding the base or display case.
These calculations provide a starting point. The final scale may be adjusted to accommodate detail, context, transportation, or presentation requirements.
Common architectural model scales
1:50 or 1:48
Suitable for interiors, residential units, sections, and projects where material or architectural detail is important.
1:100 or 1:96
Common for individual buildings and detailed architectural presentation models. In imperial notation, 1:96 is equivalent to ⅛ inch representing 1 foot.
1:144 to 1:200
Useful for larger buildings, mixed-use developments, campuses, and projects that need both architecture and surrounding context.
1:500
Appropriate for masterplans, large sites, urban relationships, and overall massing.
1:1000 and smaller
Used for city-scale studies, regional context, and large planning areas.
These are general guidelines. The actual project dimensions and intended use should determine the final selection.
Four factors that determine the right scale
Purpose
A concept or planning model may emphasize massing, site relationships, and circulation. A sales-gallery model may require larger-scale façade, landscape, lighting, and material detail.
Audience and viewing distance
A model examined closely around a meeting table has different requirements from one viewed across a sales gallery, exhibition, or public hearing room.
Required detail
Windows, mullions, railings, landscaping, interiors, and façade treatments become difficult to represent clearly below certain sizes. If a detail is important to the decision, the scale must allow it to remain legible.
Display and transportation
Available display space, doorways, elevators, shipping limits, handling, and installation all affect the practical model size. Large models may need to be designed in sections.
Choose clarity over convention
There is no single correct scale for every building type. The best scale is the one that presents the required information clearly while remaining practical to fabricate, transport, install, and use.
About this guide
This guide was prepared by the Carve Model team using our experience defining, coordinating, fabricating, reviewing, packaging, and delivering physical models. Project requirements vary, so recommendations are confirmed during the review of each project.
